Dinan 08-13 BMW M3 (E90/E92/E93) Camber Plate Kit - Front

*Photo may not represent actual product

The Dinan D160-0003 is a front camber plate kit for the E90, E92 and E93 BMW M3 with the S65 4.0L V8. It sits between the strut tower and the guide support (bearing hat), so it adds to the adjustment the factory setup already offers. The manufacturer says the plates shift the stock camber adjuster by up to -0.7 degrees, which gives you more negative front camber for cornering grip, less understeer and sharper turn-in. Owners on user forums report that the extra negative camber helps front grip on track and on spirited road driving. Because the plates are matched and engraved left and right, they are a better buy than a loose or generic plate for an E9x M3 that needs more camber than stock.

Fitment is listed by the manufacturer for 2008-2013 M3 models. The kit includes left and right plates, six M8x12 jam nuts and six 8x16mm flat-head Allen bolts. The manufacturer lists a labor time of 3.5 hours. Expect to pull the strut top mounts, press out the factory studs and set the plates in the correct orientation, then have a shop perform a full wheel alignment. Searches for "E9x M3 front camber plates," "S65 M3 negative camber kit" and "E92 M3 track alignment camber" will lead to this kit.

  • Fitment: 2008-2013 BMW M3 (E90/E92/E93)
  • Engine: S65 4.0L V8
  • Camber Adjustment Shift: Up to -0.7 degrees additional negative camber

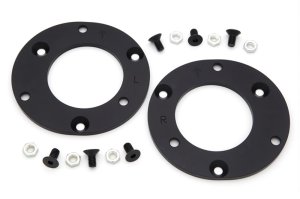

  • Included: Left and right camber plates, 6 M8x12 jam nuts, 6 8x16mm flat-head Allen bolts
  • Labor Time (Manufacturer): 3.5 hours

FAQ:

Do I need a wheel alignment after installing these camber plates?

Yes. The manufacturer's install instructions state that a wheel alignment adjustment is required after the plates are installed.

Can I install these with a Dinan suspension kit?

The manufacturer's install sheet says that if you install the plates together with a Dinan suspension kit, you should use the Dinan low-profile bearing hats supplied with that kit instead of the original hats.

Do I have to pull the strut assembly to install them?

Owners on user forums describe two approaches: removing the entire strut assembly, or working in the fender well by removing the strut-tower nuts and driving out the studs. Confirm the procedure against the manufacturer's instructions before you start.

Installing it yourself

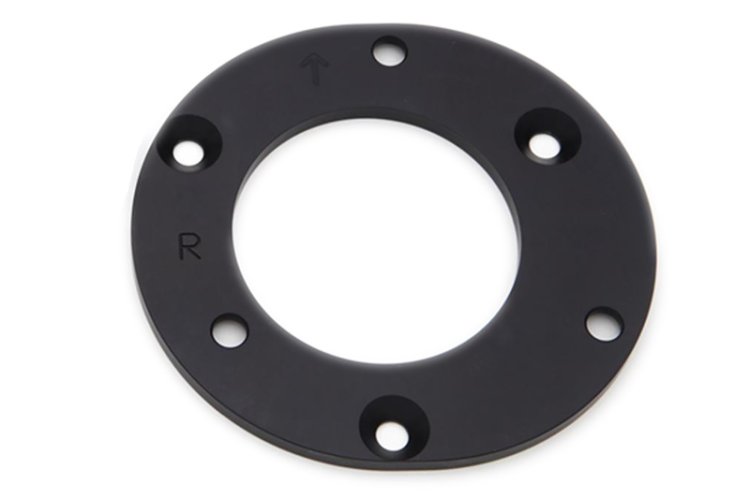

This is an intermediate job. Per the manufacturer, you should follow BMW's recommended procedure for removing the strut assemblies, then carefully drive out the factory studs from the guide supports with a hammer and punch and discard them. The plates are engraved "L" or "R" to indicate side when seated in the driver's seat facing forward, and the manufacturer warns that incorrect orientation severely affects alignment and handling, so check the orientation before you tighten anything. Attach each plate to the stock bearing plate with the jam nuts and Allen bolts, then reassemble the bearing hat. Owners on user forums note that the strut assembly sits slightly taller once the plates are installed, so you may need to compress the springs a bit more during reassembly. Common tools include an 18mm socket for the wheels, jack stands and a hammer and punch. Schedule a full alignment when you finish.

  • MPN: D160-0003
  • Manufactured by: Dinan
  • Units per SKU: 1
  • In Stock: 1
