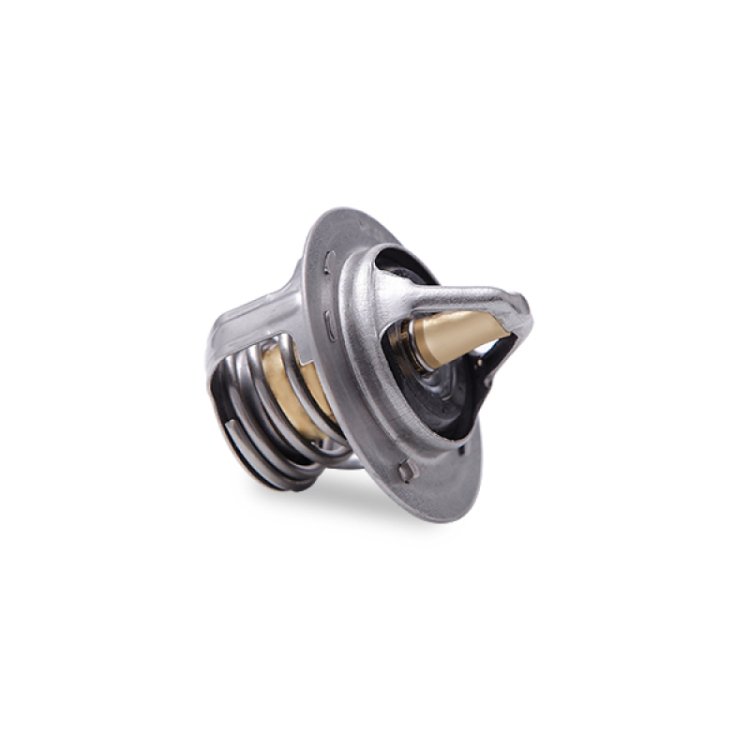

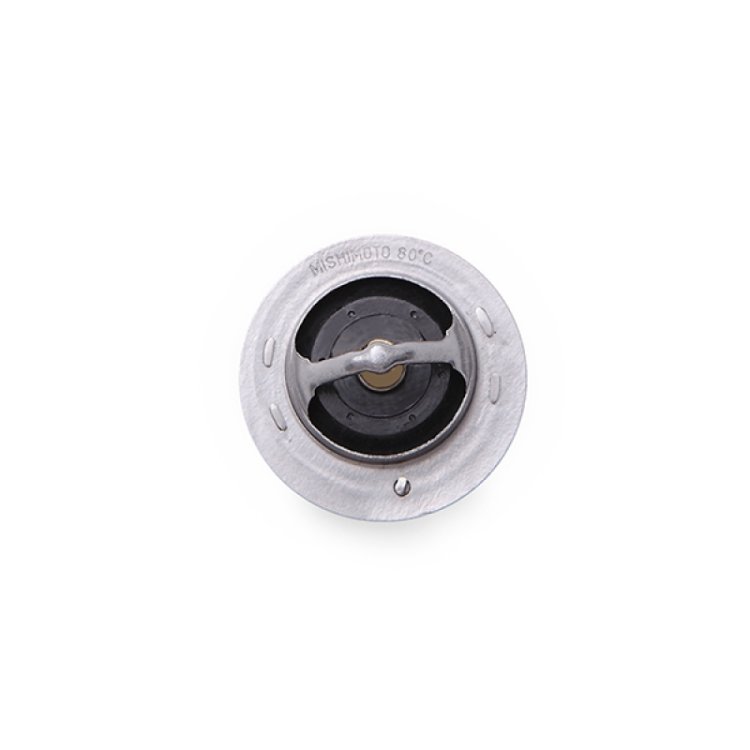

Mishimoto 99-05 Mazda Miata NB 177 Degree Racing Thermostat

*Photo may not represent actual product

The Mishimoto MMTS-MIA-99 is a low-temperature racing thermostat for the 1999-2005 Mazda Miata NB, offered as a direct replacement for the stock thermostat. The manufacturer rates its activation temperature at 177°F, compared with the 195°F factory rating, so coolant starts circulating earlier during warm-up. A thermostat that stays frozen or partially closed can keep the cooling system from using the radiator, which owners on user forums cite as a common route to NB overheating in traffic. The unit also comes with Mishimoto Lifetime Warranty, which is useful protection on a track or modified-engine build.

For fitment, the manufacturer keys this part to engine codes BP-4W and BP-Z3 and chassis code NB8C, so an NB Miata 177 degree thermostat swap suits 1999-2005 cars with those codes. The manufacturer also lists installation as easy, with 1 Part in the box. Owners on user forums stress that the small air-bleed valve belongs at the top of the housing during reinstall. Searchers looking for a 1999-2005 Miata track cooling thermostat, a BP-4W thermostat replacement, or a low-temp NB Miata thermostat upgrade will find this unit matches those needs.

  • Thermostat Type: Low-temperature racing thermostat
  • Activation Temperature: 177°F (factory rating 195°F, per the manufacturer)
  • Fitment: 1999-2005 Mazda Miata NB
  • Engine Codes: BP-4W, BP-Z3
  • Chassis Code: NB8C
  • Parts Included: (1) Mishimoto thermostat
  • Installation Difficulty: Easy (manufacturer rating)
  • Warranty: Mishimoto Lifetime Warranty

FAQ:

Will this 177°F thermostat fit my NB Miata?

The manufacturer lists it as a direct fit for the 1999-2005 NB Miata, identified by engine codes BP-4W and BP-Z3 and chassis code NB8C. Check your engine code before ordering.

Does the thermostat come with a new gasket?

The manufacturer lists the thermostat as the only included item. Owners on user forums recommend a fresh OEM-style gasket and note that a new thermostat may arrive with a rubber gasket already fitted, so check the packaging before you start.

Which way should the thermostat sit in the housing?

Owners on user forums say the thermostat's small valve should sit at the top, at the 12 o'clock position, and that the gasket must seat correctly so the thermostat does not slip out of its recess during reassembly.

Installing it yourself

The manufacturer rates this job as easy, and user forums describe it as roughly a 2 out of 5 in difficulty taking 30-45 minutes. Gather a 12 mm socket, a ratchet, Phillips and flathead screwdrivers, a scraper, a coolant drain pan, and a jack with stands. Disconnect the negative terminal from the battery first, then drain the coolant using the drain plug below the radiator. Next, disconnect the coolant temperature sensor on top of the thermostat housing and remove the two bolts on top of the housing. Forum contributors warn that those bolts can be stuck after years of heat, so don't twist too hard. Owner write-ups advise scraping old gasket material with a dull blade, since gouging the aluminum will cause a leak. Finally, refill the system with a 50/50 mix of coolant and distilled water, and do not run or drive the car if it is overheating.

  • MPN: MMTS-MIA-99
  • Manufactured by: Mishimoto
  • Units per SKU: 1
  • In Stock: 2
