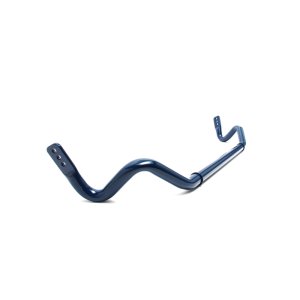

Dinan 08-13 BMW 1M/M3 (E82/E90/E92/E93) Adjustable Front Sway Bar - 32mm

*Photo may not represent actual product

This Dinan front anti-roll bar is a 32mm hollow tubular unit for the E82 1M and E9x M3 chassis. The Lightweight Tubular Adjustable Front Anti-Roll Bar is 42% lighter than a solid anti-roll bar of comparable stiffness. Rather than a fixed rate, the bar can be tuned to 50% to 90% stiffer than the stock bar, with five mounting positions across its three holes and adjustable-length end links. That tuning range is what separates it from a fixed solid bar: you can match front roll stiffness to your camber, springs and tire choice. Owners on user forums say it took some fiddling with bar setting, camber, tire pressures and coilover settings, but the car then felt very balanced and quick.

Dinan's listing confirms the bar is sized for the E82, E90, E92 and E93 applications, and the kit includes urethane bushings, heavy duty brackets, and adjustable length end links. The manufacturer's install sheet has you remove the stock bar, bushings, brackets and end links per BMW procedure, then reuse the supplied bushings and brackets. The links attach with 10mm nylon locknuts, and the sheet recommends starting at the middle hole. Before final torque, turn steering to full lock in the opposite direction and check clearance between the bar and the tie rods, and remove any preload from the links as the sheet describes.

If you are searching for an E9x M3 adjustable front sway bar, a 1M front anti-roll bar upgrade, or a tubular 32mm front bar with adjustable end links, this is the kind of part where fitment details matter. Owners on user forums report steering boot contact on a 1M after installing aftermarket control arms, and Dinan's response on that thread pointed to end link length. Details vary, so confirm compatibility with the manufacturer if your front arms are not stock.

  • Position: Front
  • Diameter: 32mm
  • Construction: Tubular (hollow)

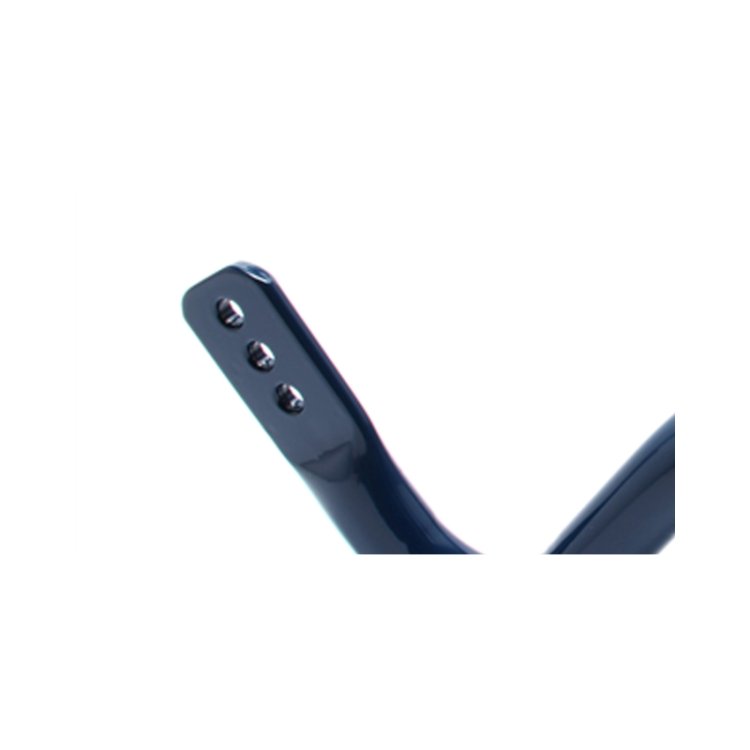

  • Adjustability: 3-hole bar with 5 mounting positions; left/right-hand threaded adjustable end links
  • Stiffness vs. stock: Adjustable from 50% to 90% stiffer (per the manufacturer)
  • Weight: 42% lighter than a solid bar of comparable stiffness (per the manufacturer)

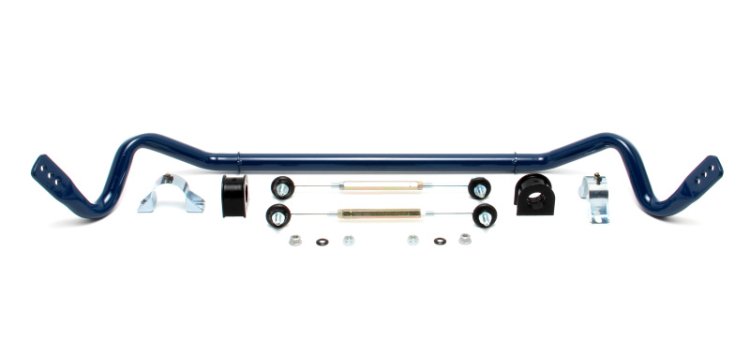

  • Included: Bar, urethane bushings, heavy-duty brackets, adjustable-length end links
  • Fitment: E82 1M; E90, E92, E93 BMW M3 (08-13)
  • Manufacturer Part Number: D120-0520

FAQ:

Do I have to use the adjustable end links that come with the bar?

The manufacturer's install sheet says the Dinan end links must be adjusted to the length and orientation of the setting you choose, and it calls for removing any preload. Owners on user forums differ on this: one reports zero preload on the stock bar once the Dinan bar was in place, so check preload on your car rather than assuming.

Can I run this bar with the stock rear sway bar?

Yes, this is a front-only bar. Owners on user forums commonly report running it with the factory rear bar, and one describes it as working well with that setup after some tuning of camber and spring settings.

Does it fit with aftermarket 1M front control arms?

Details vary. Owners on user forums report steering boot contact and tie-rod clearance problems after fitting aftermarket 1M control arms, and Dinan's response on that thread pointed to end links not being adjusted short enough. Confirm with the manufacturer before installing with non-stock arms.

Installing it yourself

Per the manufacturer's install sheet, this is a front bar swap: remove the stock bar, bushings, brackets and end links, install the Dinan bar with its supplied bushings and brackets, then attach the end links. Owners on user forums describe front bar swaps as straightforward, though that feedback was for an earlier non-adjustable Dinan bar. Use jack stands rather than a jack alone, and budget extra time for the full-lock clearance check and end-link preload adjustment. Some owners also add a waterproof grease to the bushings, which the kit's grease is intended for.

  • MPN: D120-0520
  • Manufactured by: Dinan
  • Units per SKU: 1
  • In Stock: 2
