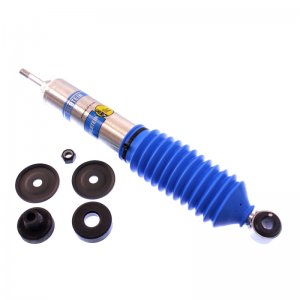

The Bilstein 33-187563 is a front replacement shock from the brand's B6 line, built as a 46mm monotube gas-pressure unit that the manufacturer says delivers fade-free damping. A velocity-sensitive digressive piston adjusts its resistance to changing road input, so a single unit responds to both smooth pavement and sharp impacts. The body is zinc plated with a blue bellows boot, and it uses a stem-style upper mount with a 16mm eye at the bottom.
Pick this over worn factory fronts when an E-Series van or motorhome feels loose, bouncy, or unsettled under load. The manufacturer calls the B6 a strong choice for improving a vehicle's performance, and it carries a limited lifetime warranty, which is worth weighing against bargain shocks with no comparable coverage. The published collapsed length of 257.0 mm and extended length of 380.5 mm let you confirm clearance before you order. Search terms buyers often use: Ford E-350 front shock upgrade, E-250 Econoline monotube shock, B6 E-Series motorhome front shock.
Fitment is the critical check. The manufacturer lists a chassis year range of 1992 to 2022 across the E-150, E-250, E-350, and E-450 family, but trim levels and van versus motorhome applications vary, so confirm against the manufacturer's application guide using your VIN. For installation, the manufacturer says work should be done by a qualified suspension specialist on a chassis hoist. Plan on a wheel alignment, a brake compensator and ABS check, and a headlight aim check afterward.
No. The manufacturer lists the spring seat as not included with this unit.
The manufacturer advises that when replacing other brands, BILSTEIN shock absorbers should always be installed as a set.
The manufacturer lists a limited lifetime warranty for this part.
This is not a casual bolt-on job. The manufacturer's installation guidance says shock and strut work requires special tools and expert knowledge, and it recommends a qualified suspension specialist. If you work at home without a chassis hoist, use level ground, block the tires that stay on the ground, keep at least two tires on the ground at all times, and support the chassis on properly rated jack stands before going underneath. Check the bushing orientation in the manufacturer's installation instructions before assembly. After installation, the manufacturer's general guidance calls for checking caster and camber, the load-dependent brake compensator and ABS system, and headlight aim. Because the unit has no spring seat, confirm your existing spring and mounting hardware are in good condition before reuse.
