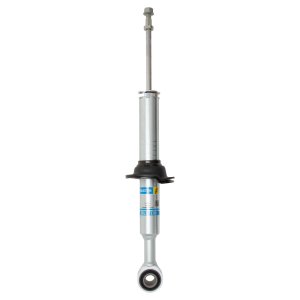

Bilstein 2025 Toyota 4Runner / 24-25 Land Cruiser B8 5100 (Ride Height Adj) Front Shock - 0-3in Lift

*Photo may not represent actual product

The Bilstein B8 5100 Ride Height Adjustable front shock is a single front unit for the 2025 Toyota 4Runner and 2024–2025 Land Cruiser. Instead of adding a spacer, you raise the front by moving the spring seat to a different snap-ring groove on the shock body, so the factory coil springs stay in place. The manufacturer positions this as a practical alternative to coil spring spacers. Owners on user forums describe the 5100 as a way to level the front end while keeping stock springs and a factory-like ride, and the design is meant for OE coilover-style front suspension.

The reason to choose this over stock or a cheaper spacer kit is control. Spacers only lift the spring and leave the damping untouched, while the 5100 is a complete replacement shock built to handle the extra height and heavier tires that many 4Runner and Land Cruiser owners run. Owners on user forums say the front feels more controlled than stock, but they also warn that swapping only the fronts can leave the rear feeling soft, so plan your rear setup at the same time. If you are searching for a 2025 4Runner front lift without spacers, a ride-height-adjustable Bilstein front shock, or a Land Cruiser front leveling shock, this is the part that fits that goal.

  • Position: Front (single unit)
  • Series: Bilstein B8 5100 Ride Height Adjustable
  • Height adjustment: Snap-ring spring seat positions, set before installation
  • Spring compatibility: Designed to use factory coil springs
  • Fitment: 2025 Toyota 4Runner (SR5, Platinum, TRD Off-Road, TRD Off-Road Premium, TRD Sport, TRD Sport Premium); 2024–2025 Toyota Land Cruiser (Base, 1958, First Edition)

FAQ:

Do I need new coil springs to use this shock?

The manufacturer designs the 5100 to work with OE springs, and owners on user forums report running them on all four corners with factory coils. Spring selection still depends on your target height and tire size, so confirm your setup with the manufacturer or a suspension shop.

Can I change the front height after installation?

Owners on user forums say the snap-ring position is generally set before the shock goes on the vehicle. Changing it later usually means removing the shock, adjusting the spring seat, and reinstalling it.

Is a wheel alignment required after installing this shock?

Owners on user forums recommend a professional alignment after any front height change. Plan on one before driving the vehicle long distances.

Will this shock lift the rear of my vehicle?

No. The front 5100 adjusts only the front height. Owners on user forums report that the rear needs its own shock and, if you want a level stance, a rear spacer or spring change.

Installing it yourself

This is a moderate-difficulty front job that most home mechanics with a floor jack, jack stands, and a spring compressor can complete. Set the spring seat to your target height before you start. Owners on user forums describe the general sequence: raise and support the vehicle, remove the wheel, disconnect the ABS line, remove the endlink and sway bar link, remove the lower and upper control arm bolts, and pull the shock assembly. Compress the spring, transfer it to the new 5100 at the chosen height, and reinstall with the top hat and mount hardware. Two common gotchas: watch the spring cup orientation when reinstalling, since owners report it can be installed upside down, and confirm the order of the washer and bushing stack in the upper mount, which forum members have found unclear. Torque fasteners to factory specifications, reconnect the ABS sensor, and get a professional alignment afterward. Check the manufacturer's current instructions for 2025 specifics, since most forum install write-ups cover earlier generations.

  • MPN: 24-347464
  • Manufactured by: Bilstein
  • Units per SKU: 1
  • In Stock: 6, On Order: 122
