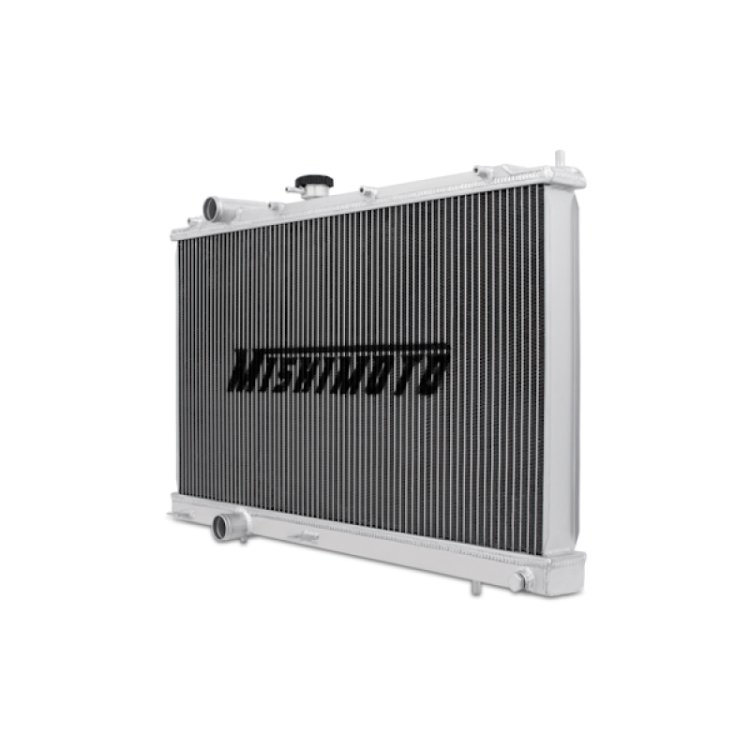

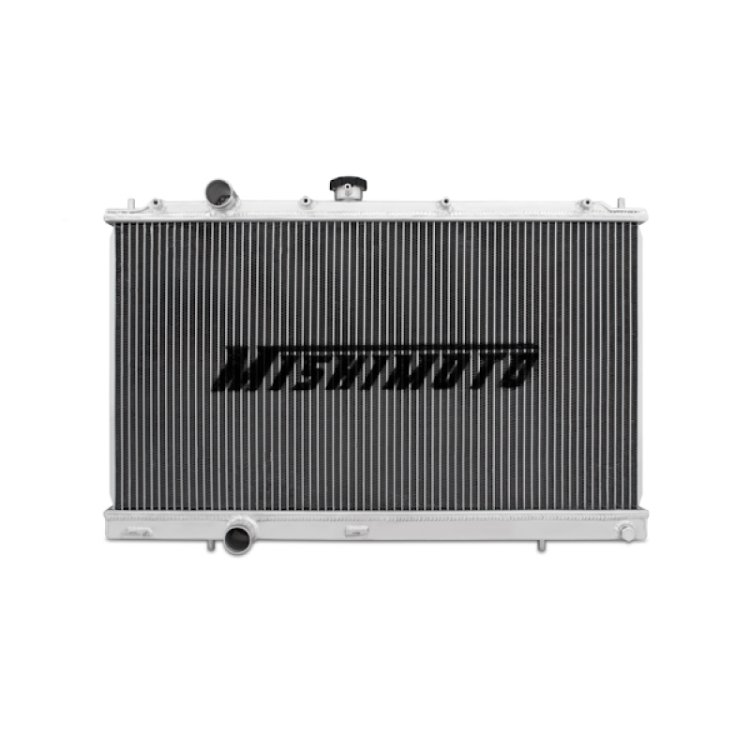

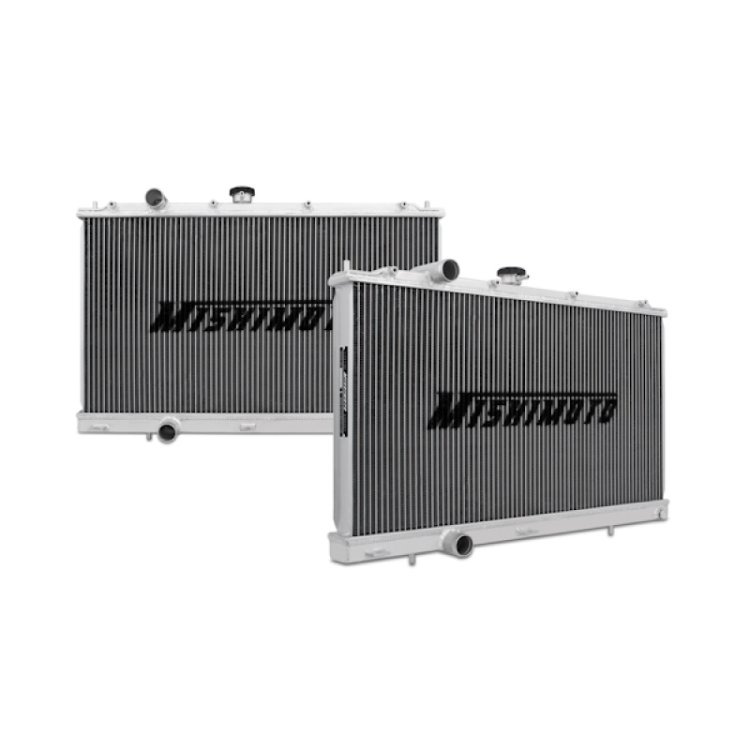

The Mishimoto MMRAD-EVO-456 is an all-aluminum replacement radiator for the Mitsubishi Lancer Evolution IV, V and VI. Mishimoto says the unit is precision engineered for flawless fitment in your Evo 4/5/6. The core is robotically TIG-welded to ensure consistent and robust construction, from the end tanks to the inlet and outlet connections. Owners on user forums often buy it to move the upper hose away from the exhaust manifold, which is a real benefit on turbo builds where the factory hose sits too close to the heat. Compared with a stock plastic unit, the brushed aluminum core is built for track and strip duty where sustained cooling matters.
The included 1.3 bar cap effectively raises the boiling point of your coolant to create a safer and more efficient system. A 1/8" NPT port accepts an additional coolant temperature sensor for logging. The kit includes a magnetic drain plug with a dowty seal, and Mishimoto backs the radiator with a lifetime warranty. Automatic-transmission owners should note that for automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. Search terms this part targets include Evo 4 5 6 aluminum radiator, Evo IV VI manual radiator upgrade, Evo 8 upper hose radiator swap and turbo Evo cooling upgrade.
The manufacturer lists this radiator for manual transmission vehicles. For automatic applications, the manufacturer directs buyers to its separate Universal Transmission Cooler Kit.
Details vary on the manufacturer's own page. The listing title shows 1996–2001, while a bullet describes a direct fit for 1996–2000. Confirm the correct year range with the manufacturer before ordering.
Owners on user forums report that the Evo 4/5/6 radiator can be swapped into Evo 8 and 9 cars, but it requires the Evo 4/5/6 style upper hose. Forum members also note the radiator is thicker than stock, which can crowd the factory fan assembly.
The manufacturer rates this install as medium difficulty and publishes a downloadable radiator installation guide. Its general procedure starts with a cool engine and the battery disconnected, then drains the cooling system through the radiator drain and cap, disconnects the upper and lower hoses, and refills after the new radiator is in. Plan on removing the fan and shroud to free the core. Owners on user forums warn that the aluminum core can leak if scraped during fan removal, so cover it and support the assembly carefully. Some owners also report that the factory fan shroud tabs do not line up cleanly on the Evo 4–6 radiator and that it may need to be mounted at a slight angle with one bolt. Bleed the air from the cooling system after refilling.
