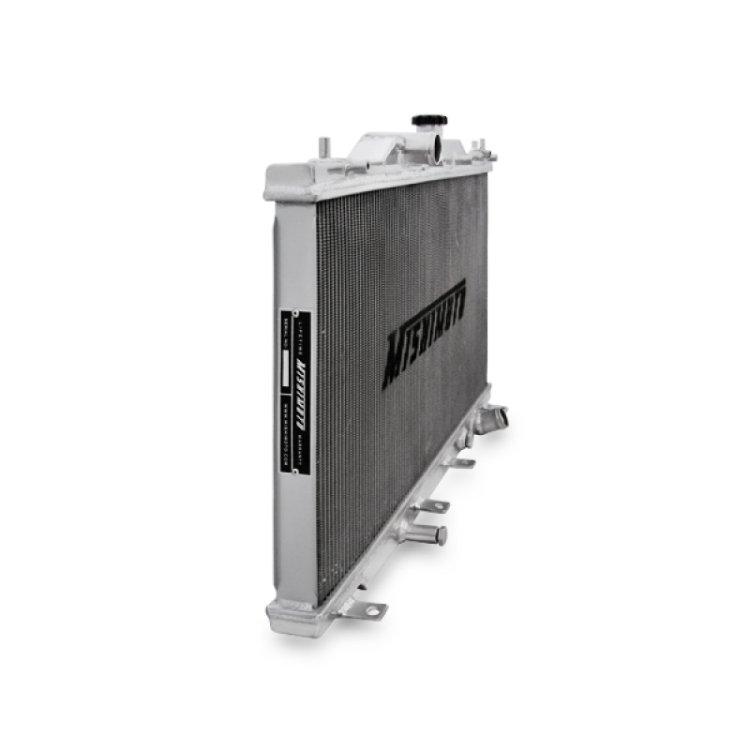

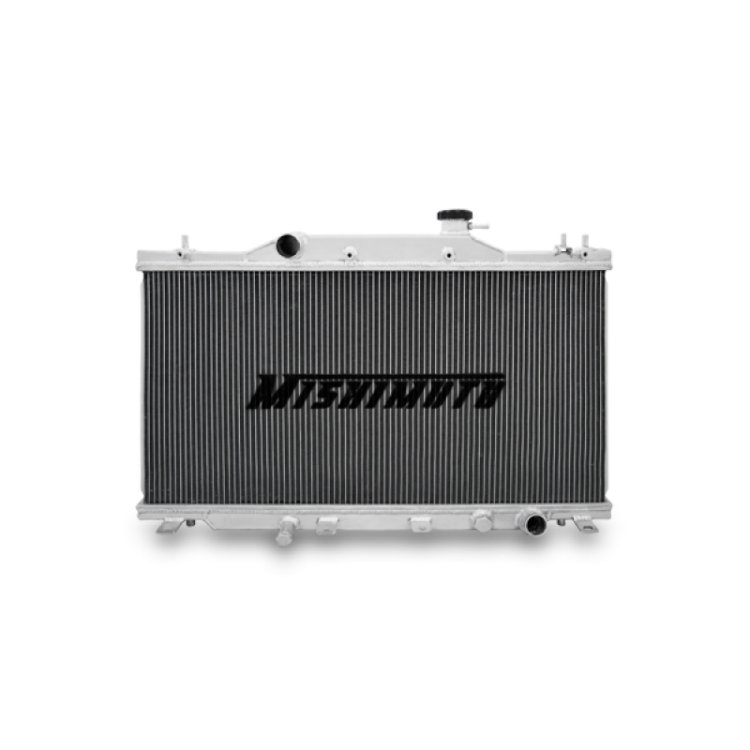

Mishimoto 02-04 Acura RSX Manual Aluminum Radiator

*Photo may not represent actual product

The Mishimoto MMRAD-RSX-02 is an all-aluminum, two-row performance radiator for the K20-powered DC5 Acura RSX. It features a two-row, 1.4" thick brazed aluminum core with durable, TIG-welded end tanks. Compared with a stock unit, the larger coolant volume and the included 1.3 bar pressure cap give the cooling system more margin for spirited street driving and track sessions. Owners on user forums have reported satisfaction with the performance after installation.

Fitment is limited to manual-transmission cars. For automatic applications, the manufacturer recommends purchasing its optional Mishimoto Universal Transmission Cooler Kit. The manufacturer rates the install as medium difficulty and publishes a downloadable installation guide. Forum write-ups describe draining the coolant, removing the bumper and hood latch, disconnecting the fan and hose connections, then lifting the radiator out with the fan shroud transferred over. One owner suggests removing the fans beforehand and unbolting the two 10mm top mounting bolts, and notes the job is much easier with the condenser moved out of the way.

Search terms this radiator matches include 2002-2006 RSX Type-S manual aluminum radiator, DC5 K20A3 K20A1 K20Z1 cooling upgrade, all-aluminum two-row RSX track radiator, and RSX radiator with magnetic drain plug. Buyers should confirm their transmission type and engine code before ordering, and should refill and bleed the system carefully after installation.

  • Vehicle Fitment: 2002–2006 Acura RSX (manual transmission)
  • Chassis Codes: DC5
  • Engine Codes: K20A3, K20A1, K20Z1
  • Core Construction: Two-row brazed aluminum, 1.4" thick
  • Core Dimensions: 27.52" long x 13.75" high
  • Overall Dimensions: 27.6" x 18.8" x 1.9"
  • Coolant Capacity: 1.91 gal
  • Inlet / Outlet: 1.25" / 1.25"
  • Drain Plug: Magnetic, M12 x 1.5 thread
  • Radiator Cap: 1.3 bar high-pressure
  • Warranty: Mishimoto Lifetime Warranty
  • Install Difficulty: Medium

FAQ:

Will this radiator work on an automatic RSX?

The manufacturer lists this radiator for manual transmission vehicles. Automatic applications require the separate Mishimoto Universal Transmission Cooler Kit.

Which RSX years does this radiator cover?

The manufacturer's listing covers 2002 through 2006 Acura RSX models with engine codes K20A3, K20A1, and K20Z1 and chassis code DC5. The product title on some retail pages reads 02-04, so confirm your model year against the manufacturer's fitment information before ordering.

What comes in the box?

According to the manufacturer, the kit includes the radiator, a 1.3 bar high-pressure radiator cap, a magnetic drain plug, and the Mishimoto Lifetime Warranty.

How much coolant does the system hold with this radiator?

The manufacturer lists a coolant capacity of 1.91 gallons for this radiator.

Installing it yourself

The manufacturer rates this install as medium difficulty and provides a PDF installation guide with the product documentation. Forum users describe a process of draining the coolant, removing the front bumper, hood latch, and upper and lower hoses, unplugging the fan motor and compressor clutch connectors, removing the upper brackets, and lifting the old radiator out before moving the fan shroud to the new unit. Owners recommend checking a service manual for torque specifications, and one forum member warned that a bad O-ring at the drain plug can cause a leak, so inspect that seal before refilling. After reinstalling, fill with coolant and bleed the air from the system.

  • MPN: MMRAD-RSX-02
  • Manufactured by: Mishimoto
  • Units per SKU: 1
  • In Stock: 8, On Order: 9
