The Dinan High Performance Heat Exchanger (D780-0001A) is a larger front-mounted cooler for the S55 twin-turbo inline-six in the F80 M3, F82/F83 M4 and F87 M2 Competition. It replaces the factory coolant-side heat exchanger that chills the water feeding the intercooler. Dinan's own testing concluded that replacing the heat exchanger with a larger unit was the most effective performance-per-dollar solution compared with replacing the intercooler. The upgrade targets heat soak, the main limit on repeated hard pulls or track sessions, without touching the charge-air path.

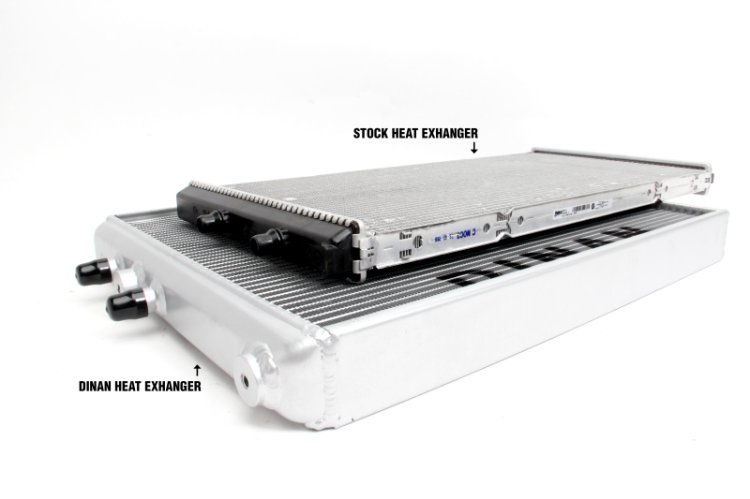

The core is 60% more core volume & 19% more face area than stock, and it is 40mm thick vs. 24mm stock. The manufacturer says this allows reduction in water temperatures to the intercooler an average of 9° across the RPM range. On the stock tune, the manufacturer lists Consistent +10 HP / +20 ft-lb of torque, and the cooling unlocks some significant additional power when paired with the stage 3 DINANTRONICS Performance Tuner. The bushings are rubber-mounted to isolate vibration. Search terms: S55 heat exchanger upgrade, F80 M3 heat soak fix, F82 M4 front cooler, F87 M2 Competition heat exchanger install.
The manufacturer's install sheet lists 2015–2018 F80 M3, 2015–2019 F82/F83 M4, and 2019 F87 M2 Competition. The product title references 2015–2021 M2/M3/M4, so confirm your exact year and VIN with the manufacturer before ordering.
The manufacturer's stated +10 HP / +20 lb-ft applies to the stock engine tune. Additional gains are available with the Stage 3 DINANTRONICS Performance Tuner, where applicable.
Owners on user forums report that no cutting or drilling of the factory bracket was needed, though the side brackets can be fiddly around the thicker cooler.
Per the manufacturer's install sheet, the job starts with removing the front bumper using the BMW-recommended procedure, then draining the intercooler coolant system through its reservoir cap. Fit the rubber mounts and metal sleeves into the Dinan brackets, attach the brackets with the included bolts and wave washers, and seat the cooler using the two round spacers at the lower mounting points. Inspect the coolant-line O-rings and replace them if needed. Finish by filling with BMW-recommended coolant, bleeding the system at the driver-side bleed screw, and performing the BMW intercooler bleed sequence. Owners on user forums estimate roughly 3.5 hours, so plan for a full afternoon and check for leaks afterward.
