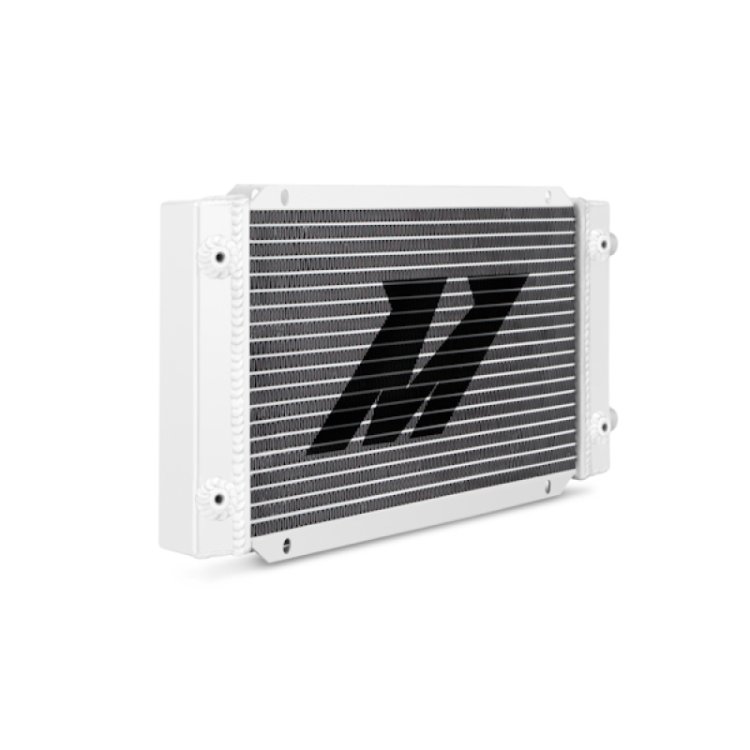

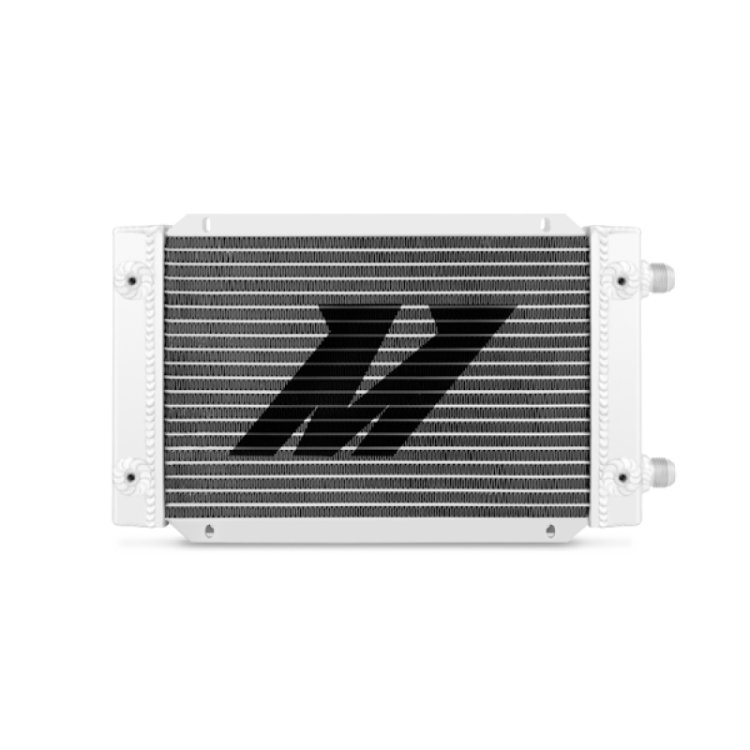

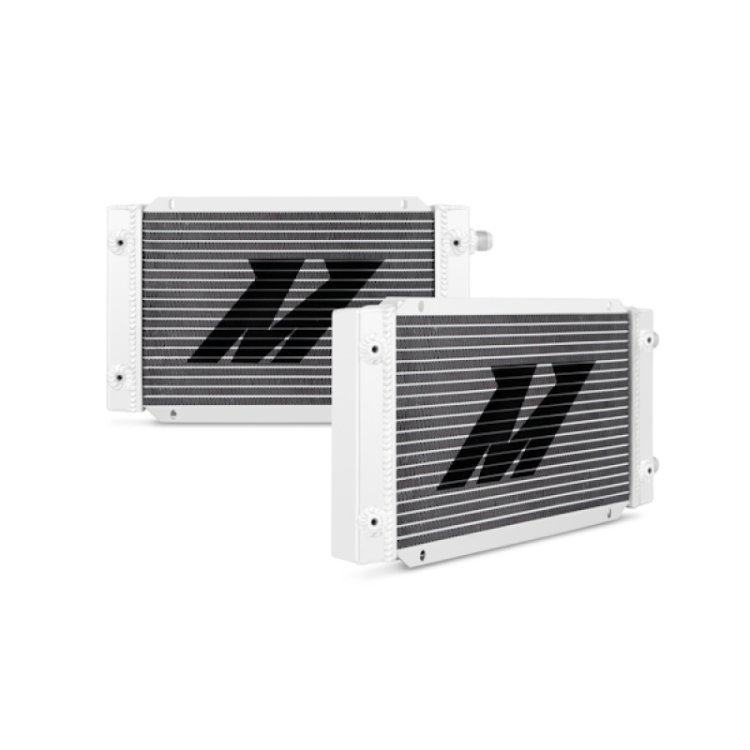

The Mishimoto MMOC-19DP is a universal silver 19-row dual-pass oil cooler. Dual pass means fluid makes two trips across the core, which helps pull more heat out of engine oil, transmission fluid or power steering fluid.
It has 8 mm external fins and internal tubes rated to 120 psi, with a 11.81 x 7.8 x 1.42 in core and -10AN inlet and outlet. Mounting hardware is not included. Mishimoto cites minimal pressure loss. Mishimoto backs it with a lifetime limited warranty for the original purchaser (receipt required).
A universal cooler fits whatever you build around it, so measure first. Find a spot with fresh airflow, such as behind the bumper opening or beside the radiator, leave room for the lines to make gentle bends, and check that the core clears suspension travel and steering. After installing, run the engine, check every fitting for seepage, and top off the oil. Match the hose and fitting size to the ports listed above, and keep a thermostat in mind for winter use.
Pair it with your own lines and brackets. Pick up the Mishimoto MMOC-19DP at Track Ready Products and give your drivetrain the cooling it has been missing.
Plan your own brackets, hoses and fittings.
Both ports are -10AN.
Flush the new cooler with about a quart of clean oil before you plumb it in, so no manufacturing debris ends up in the engine.
