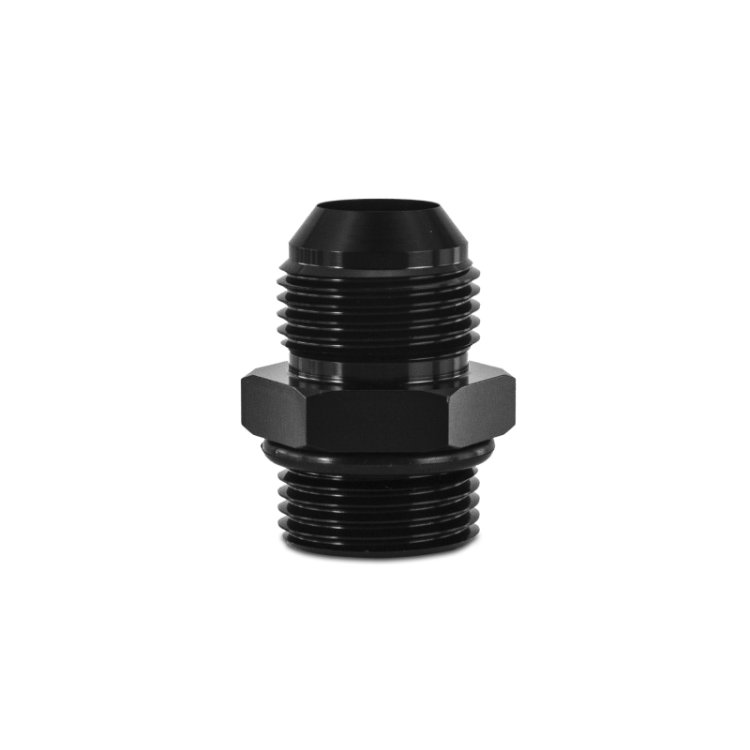

Mishimoto -10 ORB to -10AN Aluminum Fitting - Black

*Photo may not represent actual product

The Mishimoto -10 ORB to -10AN Aluminum Fitting (MMFT-10-10BK) is a black anodized adapter that converts a -10 O-ring boss port to a -10AN hose end, which makes it a practical way to route AN lines from oil cooler and turbo-oil ports. The manufacturer's adapters are CNC-machined from 6061 aluminum, and the ORB end is sealed with a Viton O-ring. That seal is the main reason to choose this over a bare or cheaper adapter: on an ORB fitting the O-ring does the sealing, while AN/JIC fittings seal on a 37-degree flare, so an O-ring boss adapter in aluminum with a proper seal avoids a common leak point on oil and cooler plumbing. Owners on user forums also note that ORB fittings can be rotated to a chosen angle before tightening, which helps with tight engine bay routing.

Pair it with a Mishimoto universal oil cooler, since the manufacturer says those coolers include female -10ORB ports to accept different fitting sizes. Searches for "-10 ORB to -10 AN adapter," "oil cooler AN fitting black anodized," and "ORB to AN adapter for track oil cooler" usually lead to this part. Before installing, lubricate the O-ring with the system fluid, and inspect the ring for nicks. Torque specifications for this exact SKU should be confirmed with the manufacturer before tightening.

  • Part Number: MMFT-10-10BK
  • Inlet: -10 ORB (O-ring boss)
  • Outlet: -10AN hose end
  • Material: 6061 aluminum, CNC-machined
  • Finish: Black anodized
  • Seal: Viton O-ring on ORB end
  • Warranty: Mishimoto Lifetime Warranty

FAQ:

Do I need to lubricate the O-ring before installing this fitting?

The manufacturer seals the ORB end with a Viton O-ring. Owners on user forums commonly recommend coating that O-ring with the system fluid before threading the fitting into the port.

Will this fitting connect to a Mishimoto universal oil cooler?

The manufacturer states its universal oil coolers feature female -10ORB ports to accommodate different fitting sizes, so this -10 ORB end is designed to suit that port type.

What warranty comes with this fitting?

The manufacturer includes its Lifetime Warranty with its adapter fittings.

Installing it yourself

Start the ORB end by hand to avoid cross-threading. Owners on user forums suggest threading it in until the O-ring just contacts the port, then tightening with a wrench on the hex. If your fitting includes a jam nut, back it off first, position the fitting, and then snug the nut against the O-ring. A common gotcha reported on forums is a crushed or pinched O-ring after overtightening, which causes a leak. Pressure-test the line once it is connected.

  • MPN: MMFT-10-10BK
  • Manufactured by: Mishimoto
  • Units per SKU: 1
  • In Stock: 2
