KW Coilover Kit V4 25-26 BMW M5 (G99) Touring Wagon 4WD

*Photo may not represent actual product

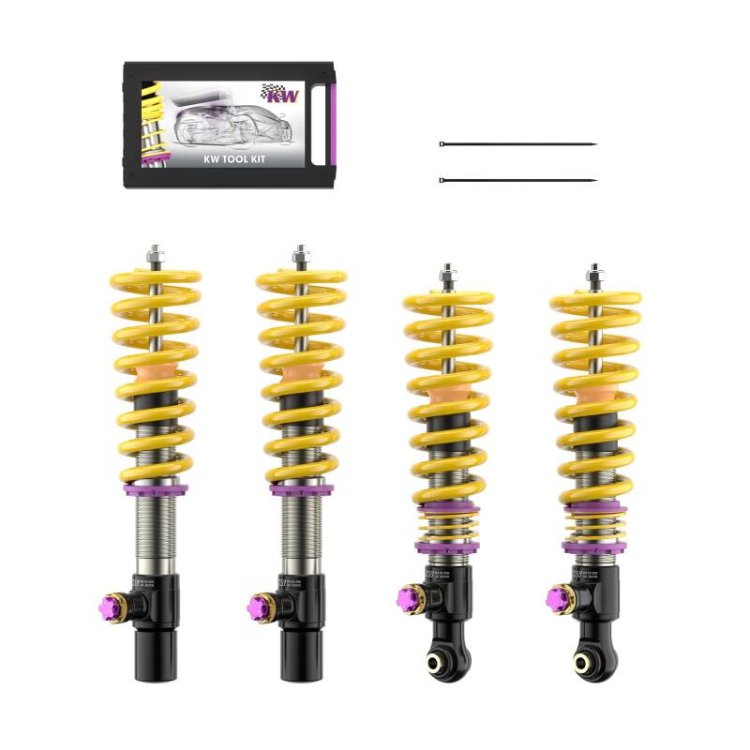

The KW V4 is a three-way adjustable coilover kit built for the 2025–2026 BMW M5 (G99) Touring. KW uses its V4 technology across several manufacturers, and the BMW M4 GTS (F82) was one of the first production cars with a suspension based on it. The system lets you tune high-speed compression, low-speed compression, and low-speed rebound separately, along with ride height. The manufacturer says the V4 allows finer damper tuning than the standard adaptive suspension. Because the spring rates and damper valving were custom-calibrated to sustain the G99's high static and dynamic axle loads, preventing bottoming out, this kit suits a heavy estate that weighs around 2.5 tonnes.

Ride height adjusts continuously, and the V4 enables lowering of 10 to 30 millimeters on both driven axles. You can also change the setting at any time after installation. The kit ships with the cancellation modules for the electronic damper control, so the factory adaptive system is retired cleanly. Notably, the kit does not include an expansion tank or piggyback. Searches for G99 M5 Touring coilovers, M5 Touring EDC delete, or 3-way adjustable KW dampers for a track-capable estate point to this part number.

  • Fits: BMW M5 (G99) Touring, 2025–2026
  • Damper adjustment: Three-way (high-speed compression, low-speed compression, low-speed rebound)
  • Ride height range: 10–30 mm, front and rear
  • Electronic damper control: Cancellation modules included
  • Expansion tank / piggyback reservoir: Not included
  • Manufacturer part number: 3A7200GL

FAQ:

Does this kit include what I need to remove the factory adaptive dampers?

Yes. The manufacturer states that the kit includes the cancellation modules needed for the electronic damper control, so the car's systems are not left expecting the original dampers.

Does the kit include a remote reservoir or piggyback shock?

No. The manufacturer states the V4 coilover kit for the G99 M5 Touring does not include an expansion tank or piggyback.

Will I need an alignment after installing these coilovers?

Owners on user forums recommend replacing the factory springs and then realigning the car. Forum owners also note that alignment and damper settings usually need real-world tuning to suit the driver.

Installing it yourself

Owners on user forums describe replacing the factory springs with the coilovers and then realigning the car, so plan for a four-wheel alignment as part of the job. The kit's electronic cancellation modules must be installed as part of the work so the car does not log suspension faults. Because the damper baseline and ride height are set during installation, a shop with BMW M5 experience is the safer choice for this kit, especially if you are not comfortable setting the damper adjustment yourself.

  • MPN: 3A7200GL
  • Manufactured by: KW
  • Units per SKU: 1
  • In Stock: 1
