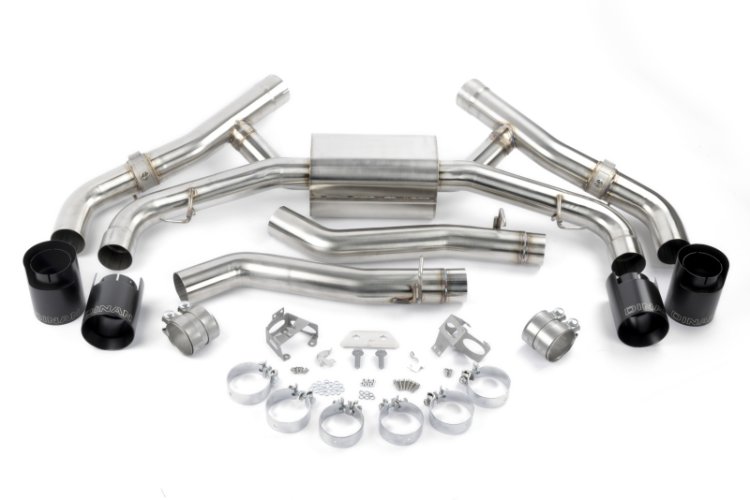

Dinan 20-26 BMW X5 M/X6 M (F95/F96) Valved Axleback Exhaust System - Black Tips

*Photo may not represent actual product

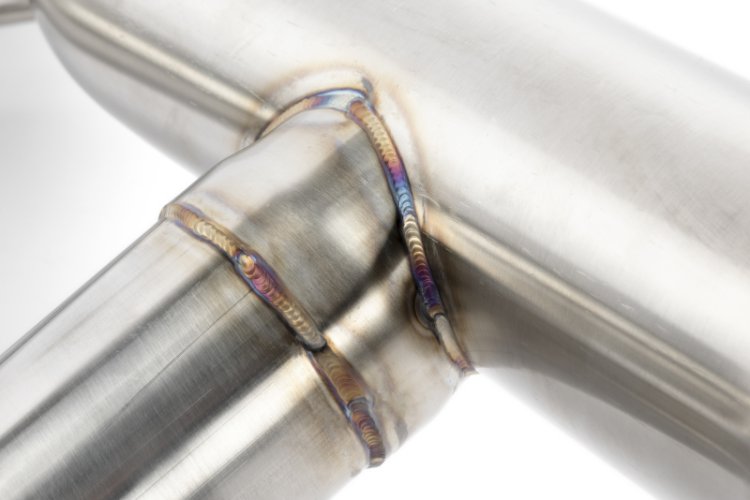

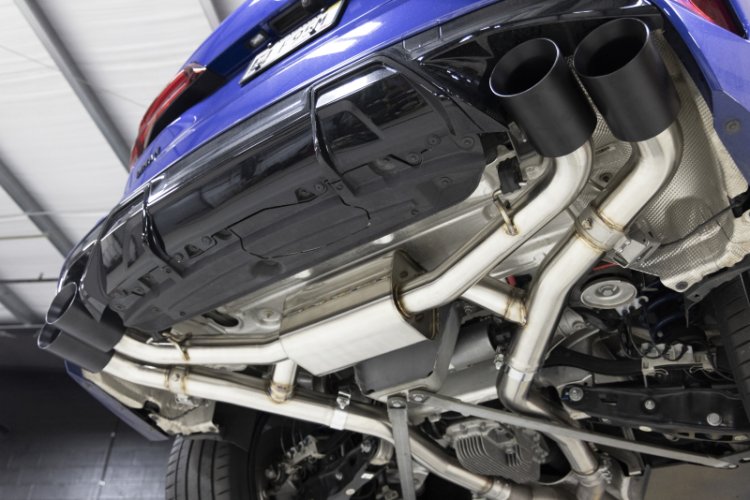

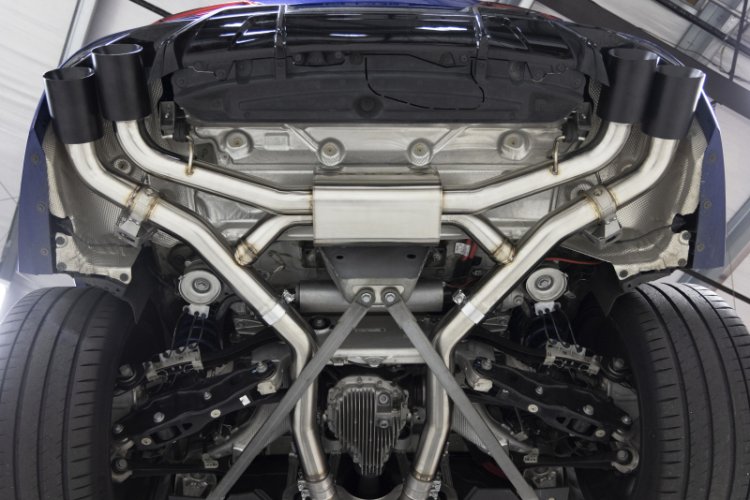

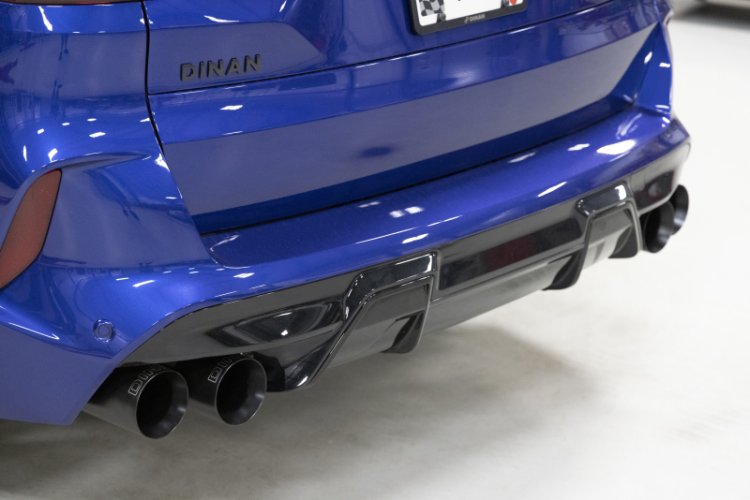

The Dinan Valved Axle-Back Exhaust (MPN D660-0090-BLK) is a bolt-on rear exhaust for the F95 X5 M and F96 X6 M, built from T304 stainless steel with a brushed finish and four 4.5-inch double-walled black ceramic tips. Dinan widened the rear piping to 83mm from the factory 80mm and kept the factory computer-controlled valves, reusing the stock actuators so tone still responds to M Drive settings. The valves stay mostly closed at low speed to keep noise down and open fully under high load, and the manufacturer adds drone abatement to reduce cabin resonance on the highway.

Choose this over stock or a cheap cutout when you want a bigger V8 voice without giving up daily-driver manners. The manufacturer rates the gain at +6 hp and +5 lb-ft at 6600 RPM, so the real payoff is the sound, corrosion-resistant 304 stainless construction, and factory-style mounting. Owners on user forums describe a throaty, louder note and say the tips are a love-it-or-hate-it style. Some parts are not legal for sale or use in California or similar states, so confirm compliance before ordering. Search terms this part matches: F95 X5M valved axleback, F96 X6M black tip exhaust, BMW X5M M Drive exhaust valve, D660-0090-BLK.

  • Fitment: F95 X5 M and F96 X6 M, 2020–2026 (per manufacturer)

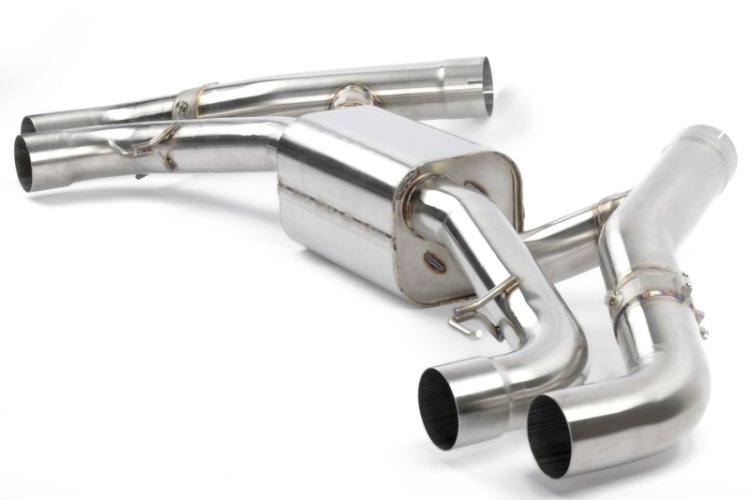

  • Material: T304 stainless steel, brushed finish

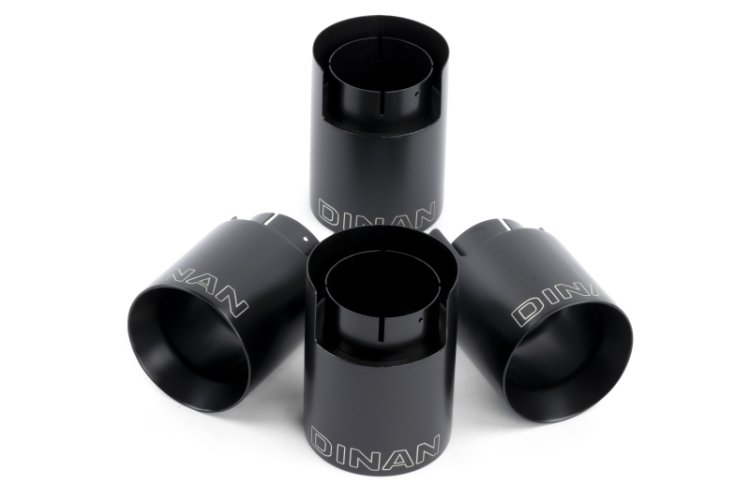

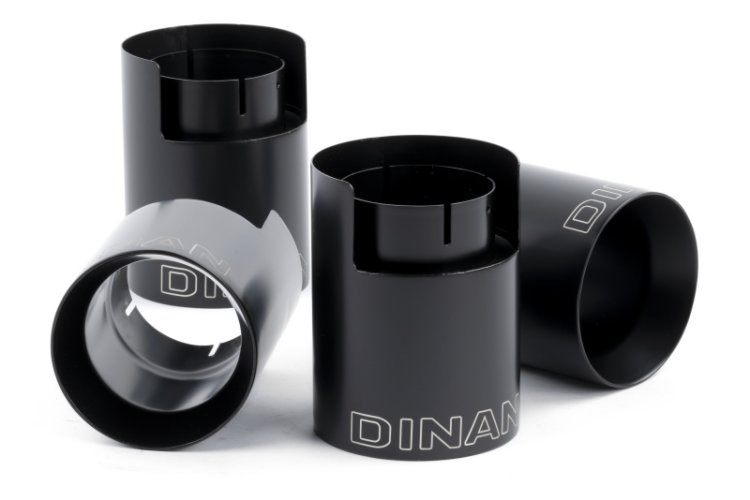

  • Exhaust Tips: Four 4.5" (114mm) double-walled, black ceramic coated, laser-engraved Dinan logo
  • Piping Diameter: 83mm (factory 80mm)
  • Rated Gain: +6 hp / +5 lb-ft @ 6600 RPM (manufacturer rating)
  • Valve Control: Stock exhaust valve actuators reused; valves remain M Drive controlled

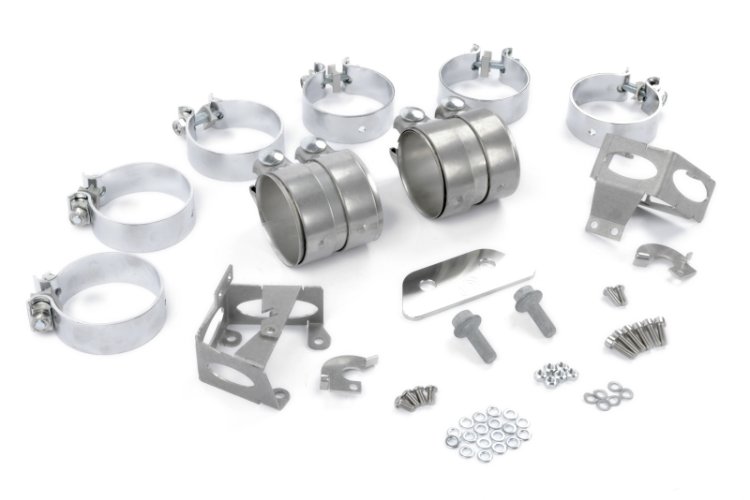

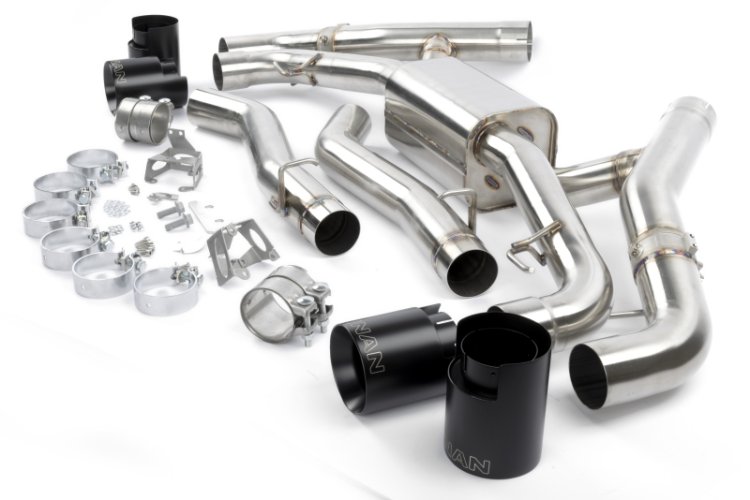

  • Type: Axle-back, bolt-on with included hangers and clamps
  • Manufacturer Labor Time: 2.7 hours

FAQ:

Does this kit keep the factory exhaust valve function?

Yes. The manufacturer states the stock exhaust valve actuators are reused and valve operation is unchanged, so exhaust tone can still be adjusted through the M Drive settings.

Which midpipe should I pair with it?

The manufacturer lists its 2020–2023 High Flow Middle Exhaust (D660-0092) as confirmed to fit with this axle-back. For 2024–2026 LCI S68-powered models, the manufacturer offers a separate X-pipe (D660-0103). Owners on user forums note the earlier midpipe connects differently on the S68 engine, so confirm fitment before pairing.

Is this exhaust legal in California?

The manufacturer notes that some parts are not legal for use in California or other states with similar regulations. Check local emissions and noise rules before installing.

Installing it yourself

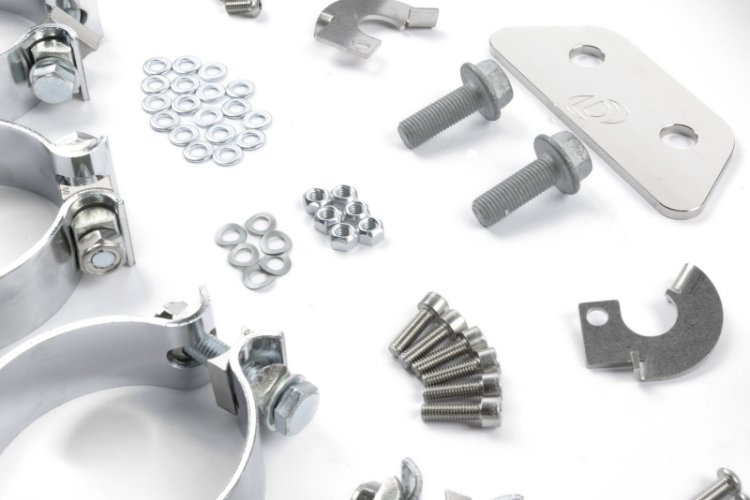

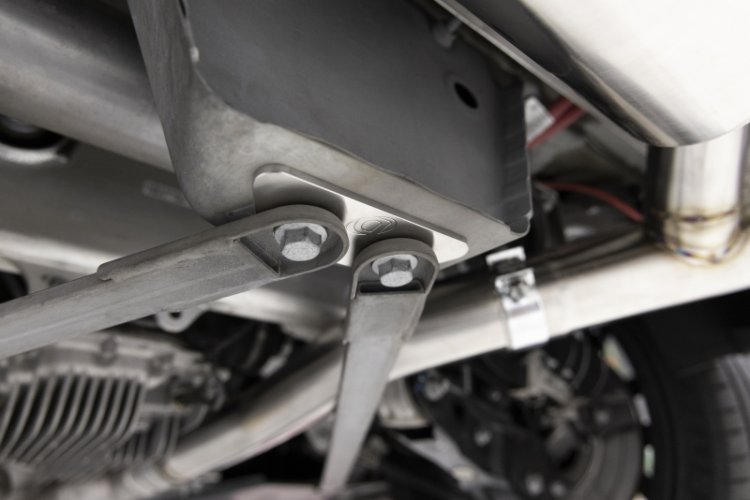

The manufacturer rates installation at 2.7 labor hours and publishes an install sheet for this part number, so review it before you start. The system uses the factory brackets and hangers, which keeps the mounting close to stock. Owners on user forums describe the install as straightforward with a few tedious steps, mainly the valve-module bracket, which uses many small screws, nuts, and washers. One owner reported dented box ends at the midpipe joint that a pipe expander fixed, so inspect the pipe ends before fitting. Expect to lower the rear section, so use a jack or stand to support it and have a helper available.

  • MPN: D660-0090-BLK
  • Manufactured by: Dinan
  • Units per SKU: 1
  • In Stock: 1, On Order: 1
